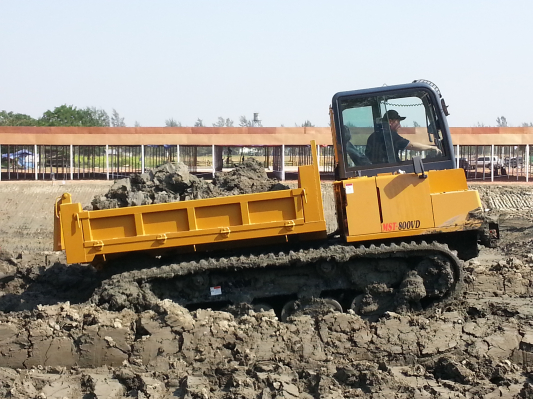

Morooka Rubber Track Carrier Capacity 5.5T - 11T

Morooka Model MST-1000VDR MST-1500VD MST-1500VDR MST-2200VD MST-2200VDR
Machine Weight 9,140 kg 10,900 kg 11,800 kg 14,100 kg 16,000 kg
Maximum Payload 5,500 kg 7,000 kg 7,000 kg 11,000 kg 11,000 kg
Loading Capacity (Struck/Heaped) 1.86 m³ / 2.69 m³ 2.39 m³ / 4.14 m³ 2.68 m³ / 4.12 m³ 3.53 m³ / 5.92 m³ 3.98 m³ / 6.29 m³
Engine CAT C4.4 Cummins QSB6.7 Cummins QSB6.7 Cummins QSB6.7 CAT C7.1
Tier 4 Final / EU Stage IV Tier 4 Final, EU Stage IV Tier 4 Final, EU Stage IV Tier 4 Final, EU Stage IV Tier 4 Final, EU Stage IV
Rated Output 92.6 kW / 2,200 rpm 168 kW / 2,200 rpm 168 kW / 2,200 rpm 186 kW / 2,000 rpm 186.5 kW / 2,200 rpm
Battery 12V, 64Ah (5 hour rate) × 2 12V, 92Ah × 2 12V, 92Ah (5 hour rate) × 2 12V, 120Ah × 2 12V, 140Ah (5 hour rate) × 2
Overall Length 4,970 mm 5,750 mm 5,790 mm 6,260 mm 5,900 mm
Overall Width 2,400 mm 2,650 mm 2,600 mm 2,850 mm 2,980 mm
Overall Height 2,900 mm 2,910 mm 3,150 mm 3,170 mm 3,280 mm
Dump Bed (Length × Width × Height) 2,300 mm × 2,100 mm × 450 mm 3,100 mm × 2,200 mm × 350 mm 2,750 mm × 2,350 mm × 470 mm 3,600 mm × 2,450 mm × 400 mm 3,200 mm × 2,750 mm × 500 mm
Dump Angle 60° 55° 60° 60° 60°
Ground Clearance 515 mm 540 mm 560 mm 480 mm 580 mm
Slew Radius 2,820 mm - 3,370 mm - 3,380 mm
Crawler Width 700 mm 700 mm 700 mm 750 mm 800 mm
Drive System HST HST HST HST HST
Travel Speed (Lo/Hi) 6.7 / 9.6 km/h 6.0 / 11.0 km/h 6.1 / 8.6 km/h 7.0 / 10.0 km/h 8.0 / 10.0 km/h
Ground Pressure (Empty) 26.8 kPa 25.4 kPa 27.6 kPa 33.2 kPa 35.4 kPa
Structure Cabin, ROPS / FOPS Cabin, ROPS / FOPS II Cabin, ROPS / FOPS II Cabin, ROPS / FOPS II Cabin, ROPS / FOPS II
Fuel Tank Capacity 140L 200L 200L 240L 300L
Travel Lever Type 2 levers 2 levers 2 levers 2 levers 2 levers
Dump Bed Type Scoop End Drop Side Rear Door Scoop End Vessel Rear Door Scoop End
