| ENGINE |

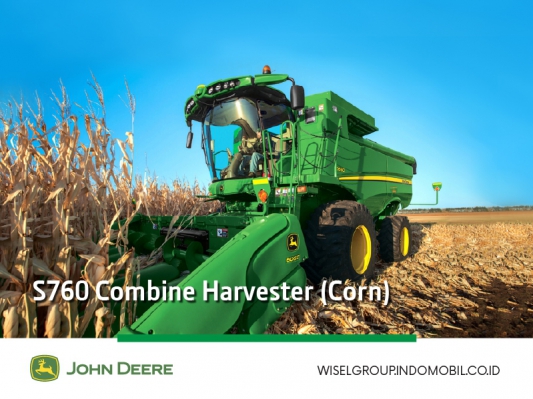

S760 |
| Model |
John Deere 6 cyl. 9.0 L |
| Displacement (L/cu. in.) |
9.0/548 |
| Fuel Capacity (L/gal.) |
950/250 |
| Rated Speed (rpm) |
2200 |
| Rated Power (kW/hp) @ Rated Speed - T4 |
249/333 |
| Power Boost @ Rated Speed (kW/hp) - T4 |
274/367 |
| Rated Power @ -100 rpm Rated Speed (kW/hp) - T4 |
267/358 |
| Peak Power @ -200 rpm Rated Speed (kW/hp) - T4 |
285/382 |
| Rated Power (kW/hp) @ Rated Speed ---NON-iT4 |
239/320 |
| Power Boost @ Rated Speed (kW/hp) ---NON-iT4 |
25/34 |
| FEEDING |
|
| Drive Type |
Fixed or Variable |
| Conveyor Chain Slat Type |
Cast Iron |
| Width (mm/in.) |
1397/55 |
| Length (mm/in.) |
1727/68 |
| Feed Accelerator, Stone Trap (FAST) |
Standard |
| THRESHING/SEPARATING |
|
| Separator Type |
Rotary |
| Rotor Length (mm/in.) |
3124/123 |
| Rotor Diameter (mm/in.) |
762/30 |
| Rotor Speed Range (rpm) |
210-1000 |
| Concave Area (m2/in.2) |
1.1/1705 |
| Separating Area (m2/in.2) |
1.54/2390 |
| Discharge Grate Area (m2/in.2) |
0.36/555 |
| CLEANING |
|
| Front Chaffer (m2/in.2) |
0.5/801 |
| Chaffer (m2/in.2) |
2.5/3824 |
| Sieve Area (m2/in.2) |
2.1/3255 |
| Total Cleaning Area (m2/in.2) |
5.1/7905 |
| Cleaning Fan Speed (rpm) |
620-1350 |
| GRAIN HANDLING |
|
| Grain Tank Size (L/bu.) |
10600/300 |
| Unloading Auger Length (m/ft.) |
6.9/22.5, 7.9/26, |
| |
or 8.7/28.5 |
| Unloading Rate (L/sec. / bu/sec.) |
116.3 / 3.3 |
